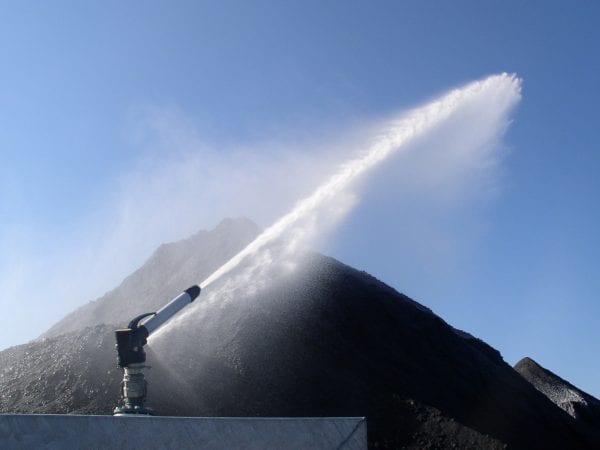

The Perrot P2M Piston Drive Sprinkler has been designed with a focus on performance. Capable of a maximum throw of up to 69 m. A combination of high flows and fast (adjustable) rotation speeds allows for quick cooling of synthetic sports fields and is ideal for use in agriculture and dust suppression systems.
Highlights
- Innovative nozzle technology delivers high uniformity
- Low maintenance piston drive provides a smooth vibration free continuous rotation
- The combination of high flows and fast (adjustable) rotation speeds allows for quick cooling of synthetic sports
- Part and Full Circle in one sprinkler
Features
Innovative Nozzle Technology
P2M nozzle design minimizes water turbulence, which helps to maintain stream exit speed at the nozzle outlet. This results in a longer throw, reduced flows and high distribution uniformity.
Reduced Watering Time
A combination of high flows and fast (adjustable) rotation speeds allows for quick cooling of synthetic sports fields and is ideal for use in agriculture and dust suppression systems. P2M features adjustable rotation speeds of 2 to 7 minutes for a 360° arc.
Easy to Adjust
The P2M is a Full/Part Circle sprinkler:
- Part Circle (30° – 330°) – via arc adjustment springs.
- Full Circle (360°) – remove arc adjustment spring stops.
Low Maintenance Piston Drive
A fully enclosed piston drive system presents a smooth vibration free continuous rotation.
Specifications
Nozzle Sizes:
- 26, 30 and 34 mm
Operating Pressure:
- 500 – 800 kPa
Radius Range:
- 50 – 69 m
Flow Range:
- 961.7 – 2021.7 Lpm
Rotation Time:
- 2.3 to 7 minutes
Trajectory:
- 25°
Inlet:
- 3” BSP
