Avoid the creepy crawlies in your valve box and take water automation to the next level with Toro’s Tempus™ DC battery operated controller. Ideal to manage irrigation in areas without electricity and enabled with Bluetooth technology to provide you with full control of your watering from your smart devices.
Features
Bluetooth® Connectivity
Allows instant control from your smartphone device without having to access the valve box.

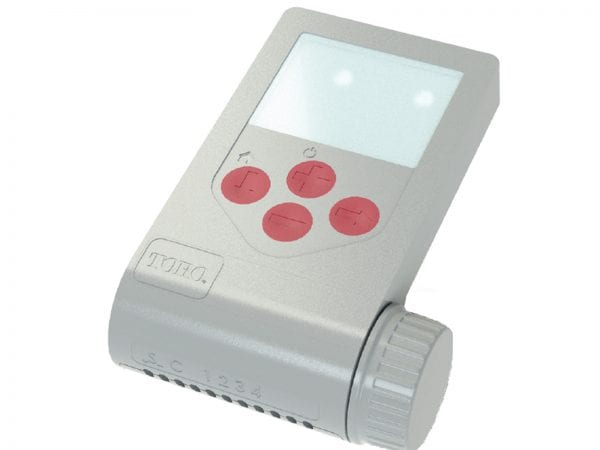

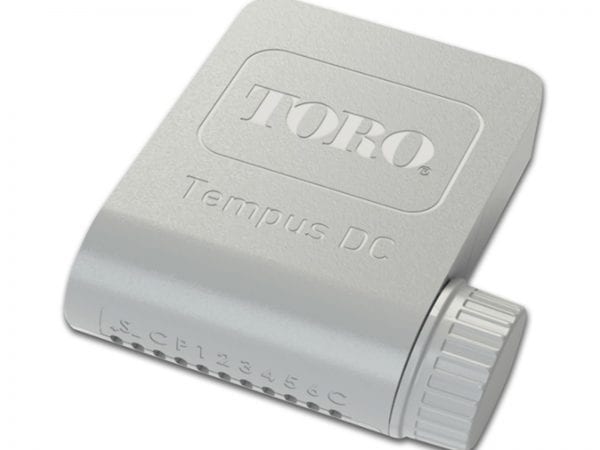

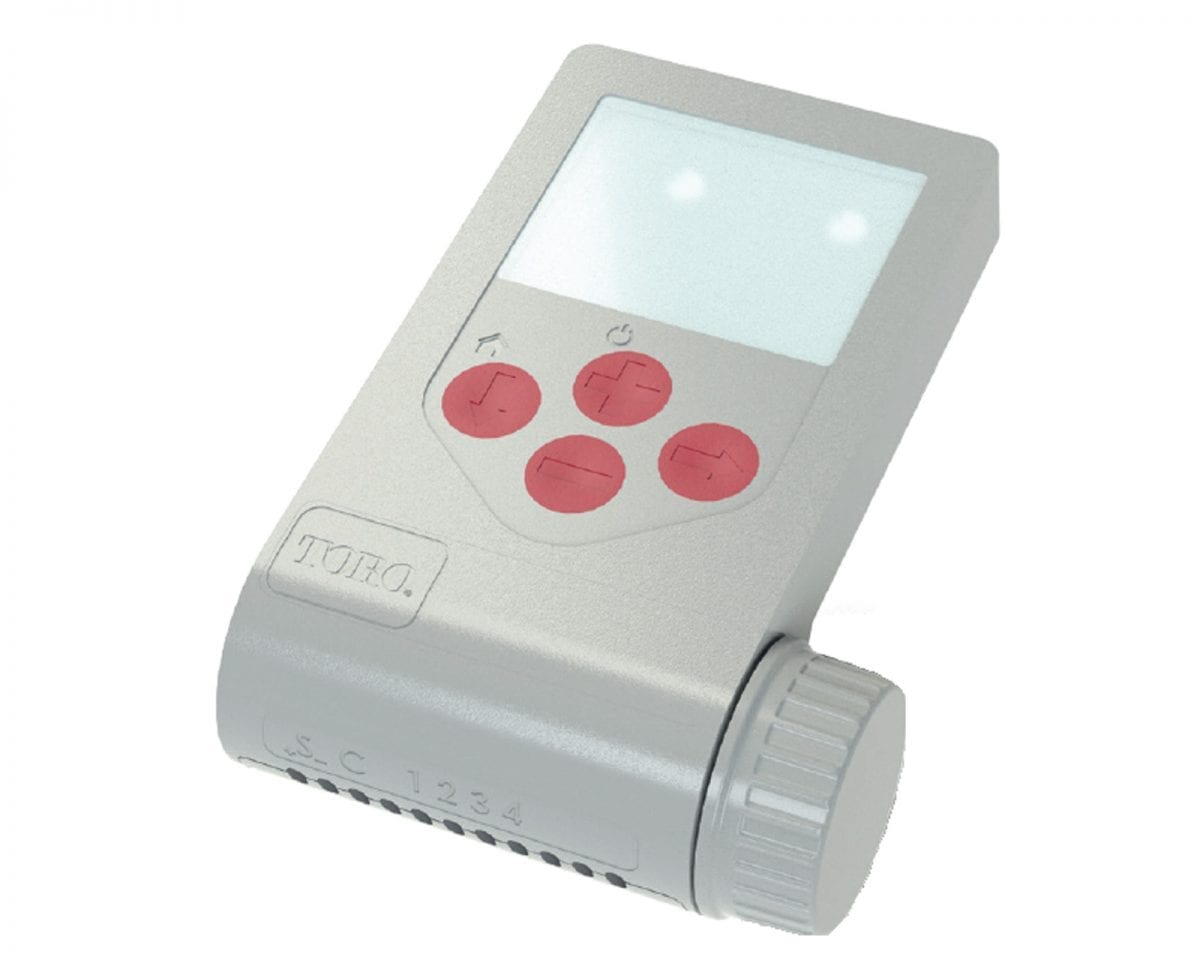

2 Display Versions To Choose from - WITH and WITHOUT LCD Screen
Available in versions with and without LCD display to suit your controlling and programming needs.
Waterproof
Housed in a durable IP68 rate plastic case to withstand water and extreme weather conditions.
Battery-Operated
Ideal for use in areas without mains power available.
Water Budget
Enables the run time to be adjusted from 0% to 200% in 10% increments.
Rain Sensor-Ready
Has set input for rain sensor to make water conservation easy and simple.
Specifications
Operating Specifications
• 1, 2, 4, 6 stations.
• 4 independent programs
• 3 start times per program.
• Non-volatile memory retains programming in the event of power outage or battery replacement.
• Bracket for optional on-valve installation.
• Watering time from 1 minute to 8 hours in 1 minute increments.
• Flexible irrigation programming:
– Daily
– Weekly
– Odd/Even Day
– 1 to 31-day intervals.
• Automatic, semi-automatic and manual start.
• Programmable rain delay from 1 day up to 15 days.
Dimensions
Size:
• TEMPUS™ DC without LDC: 12 cm x 11,5 cm x 5 cm (W x H x D)
• TEMPUS™ DC with LCD: 10,5 cm x 15,5 cm x 5 cm (W x H x D)
Weight:
• TEMPUS™ DC without LCD: 250 gr.
• TEMPUS™ DC with LCD: 260 gr.
Electrical Specifications
• Battery-operated (4 x 1.5V battery for LCD Model; 9V battery for NO LCD Model).
• Operating temperature of -10˚ C to 50˚ C.
• Output 9V DC latching.
• Compatible with Toro DCL DC latching solenoid (max pressure 6 bar) and works with most competitor coils.
• Maximum distance of 30 m between controller and DC latching solenoid (cable section 0.75mm2 ).
• IP68-rated, 100% waterproof case.
Warranty Period
2-Years
