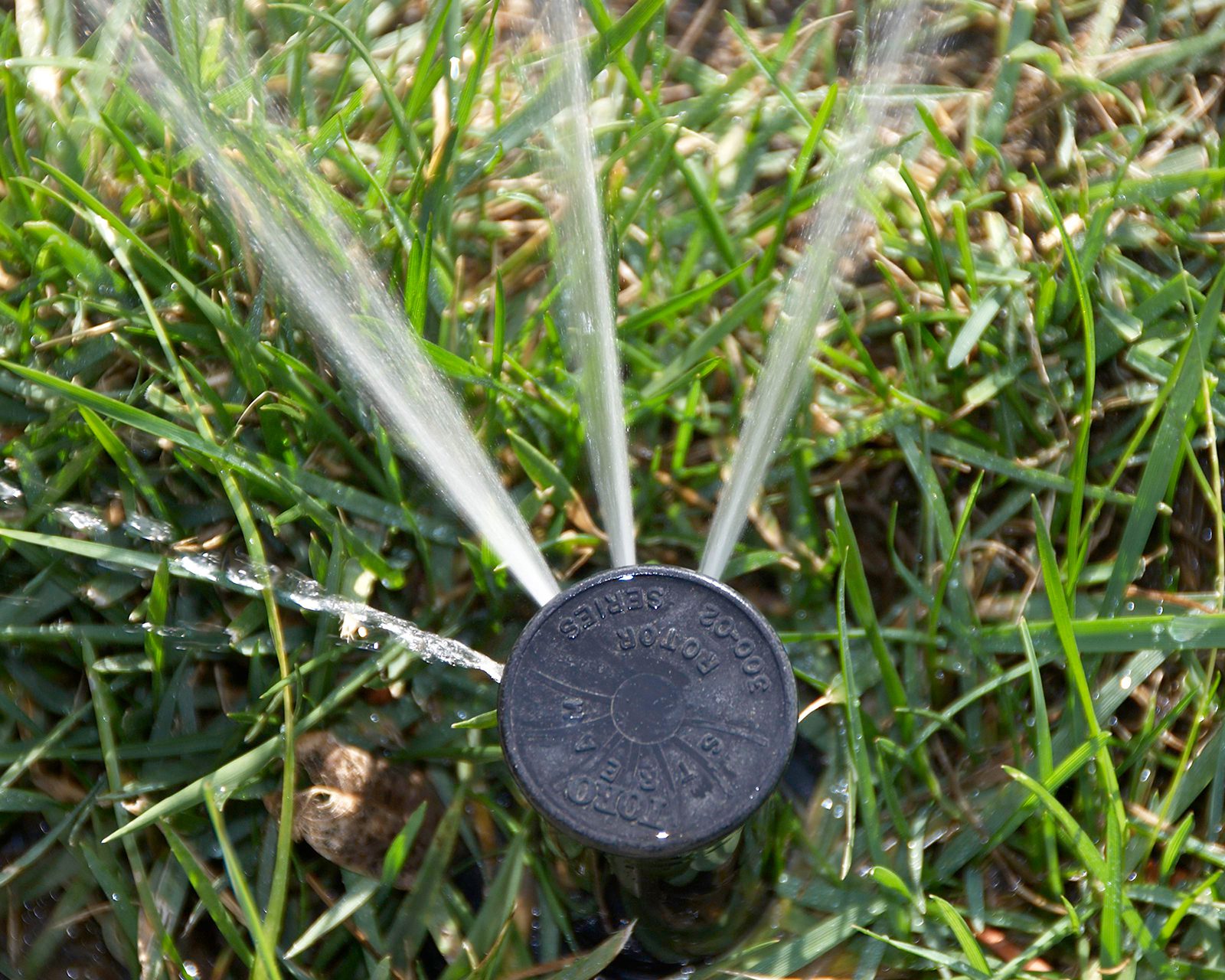

Toro Multi-Stream Rotors are well known for their visually appealing, multi-stream distribution of water. For medium-to-large lawn and shrub areas, in residential and light commercial applications.
Highlights
- Multiple rotating stream pattern allows water to soak into tight soils and slopes reducing risk of runoff.
- True matched precipitation rate nozzles and arc discs.

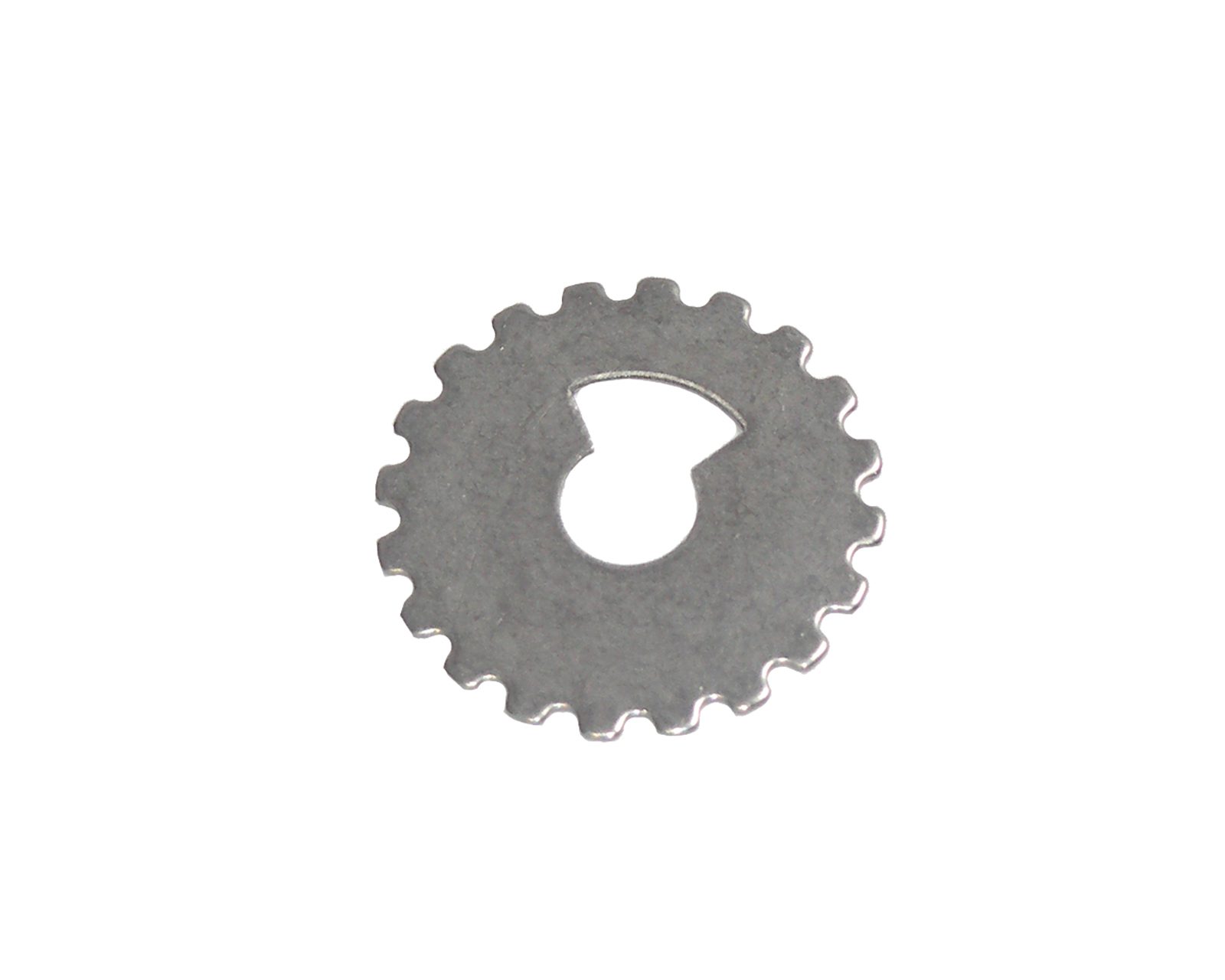

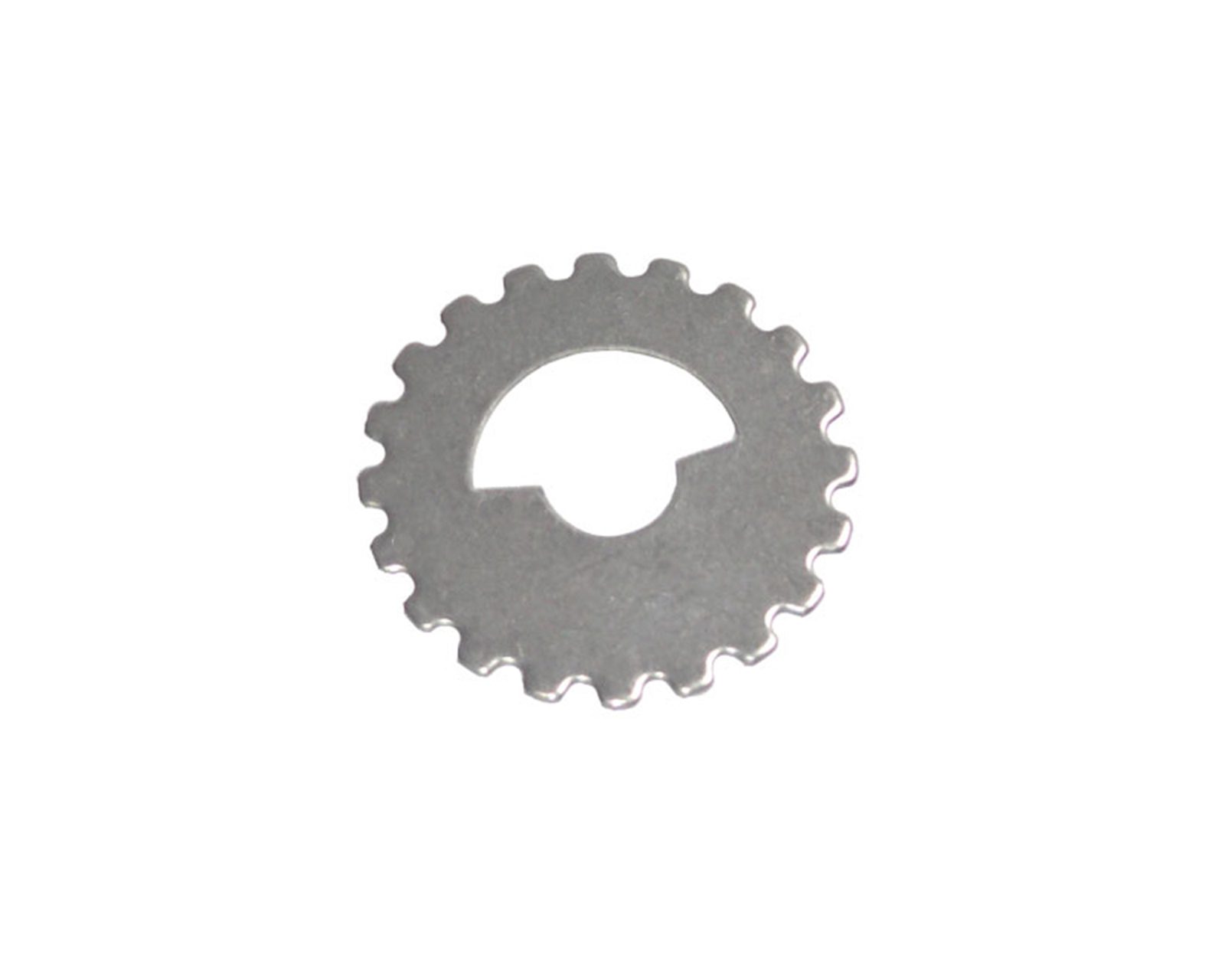

- Choice of six nozzles and nine interchangeable arc discs.
- Planetary, water lubricated, gear-drive design for longer life.
- Large basket filter screen.
Specifications
Recommended Operating Pressure
- 240 – 250 kPa
Maximum operating pressure
- 520 kPa
Flow Rate
- 2 – 28.5 Lpm
Trajectory
- 27°
Pop-up to Nozzle
- 70 mm
Dimensions
- 20 mm Inlet
