The Toro T5 RapidSet™ Series Rotor is packed with features including an industry-leading 5” pop-up height, advanced nozzle technology and superior debris-tolerant seal. RapidSet™ arc adjustment offers a quick and effortless way to adjust rotor arc settings with no tools required. The arc can be reduced in a similar fashion. A built in ‘slip-clutch’ protects the gears during adjustment.
Highlights
-
Set in Seconds with NO TOOLS arc adjustments
-
Airfoil Technology™ Nozzles deliver leading distribution uniformity
-

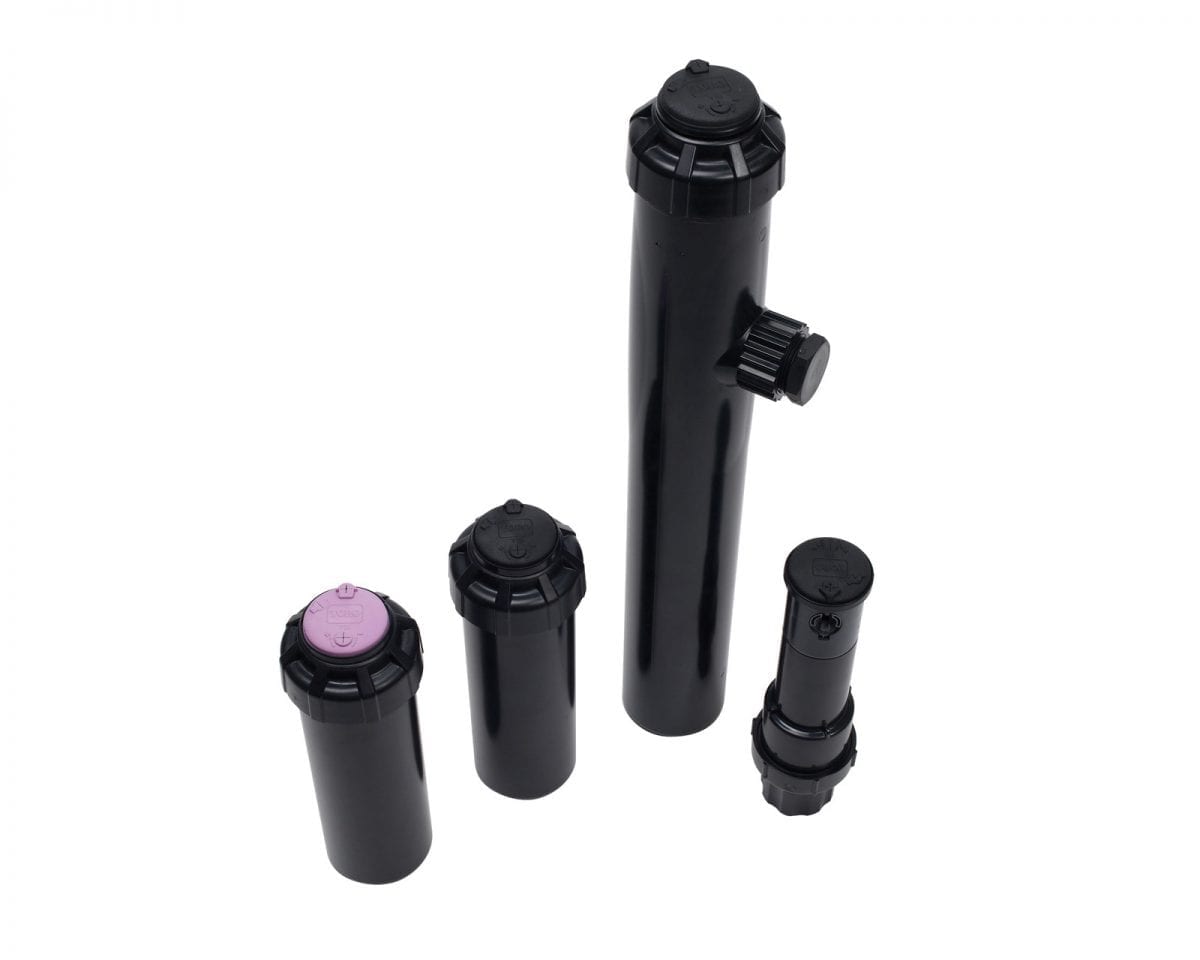

Available in Lawn, Shrub, High Pop, and Stainless Steel models
-
Optional pre-installed check valve holds back strength of 2.1 m of elevation change
Features
127 mm (5”) Pop-Up
Easily replaces many competitive 100 mm (4’) units in the same footprint but delivers an extra inch of pop-up.
Standard Rubber Cover
The top of the sprinkler is covered with a heavy duty rubber cover to minimize impact injuries and reduce liability
Airfoil™ Technology Nozzles

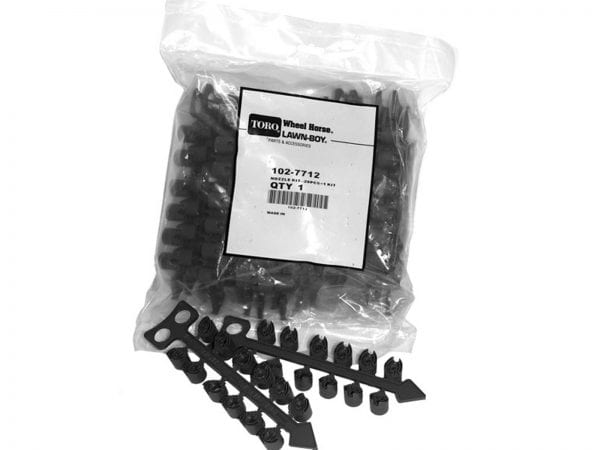

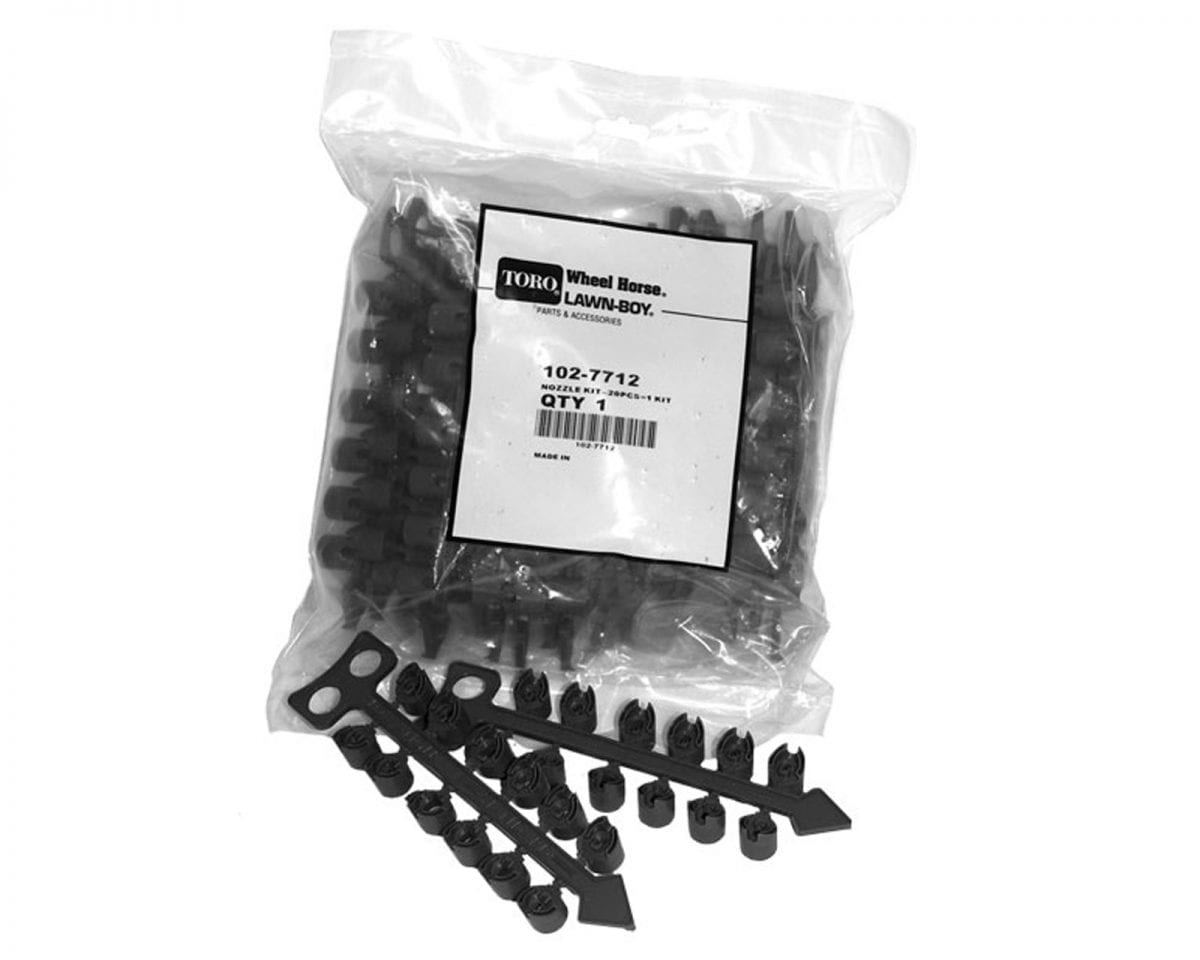

The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles that utilise patent pending Airfoil technology, which creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.
Optional Check Valve
Available with a hold back strength of 2.1 m of elevation change
Top Adjust Arc Set
The T5 can be set between a minimum arc set of 40° and a full circle set of 360°. Arc changes are made from the top of the sprinkler while popped up or down by using a small slotted screwdriver.
RapidSet® Arc Adjustment
Easy tool-free arc adjustment, without any risk to over torque and damage the interior of the rotor.
Specifications
Radius:
- 7.6 – 15.2m
Flow Rate:
- 2.8 – 36.7 Lpm
Operating Pressure Range:
- 170 – 450 kPa (Max. 517 kPa)
Trajectory:
- 25° standard
- 10° low angle
Pop-up to nozzle:
- 125mm (lawn)
- 300mm (high pop)
Inlet:
- 20mm
Options:
- Check valve

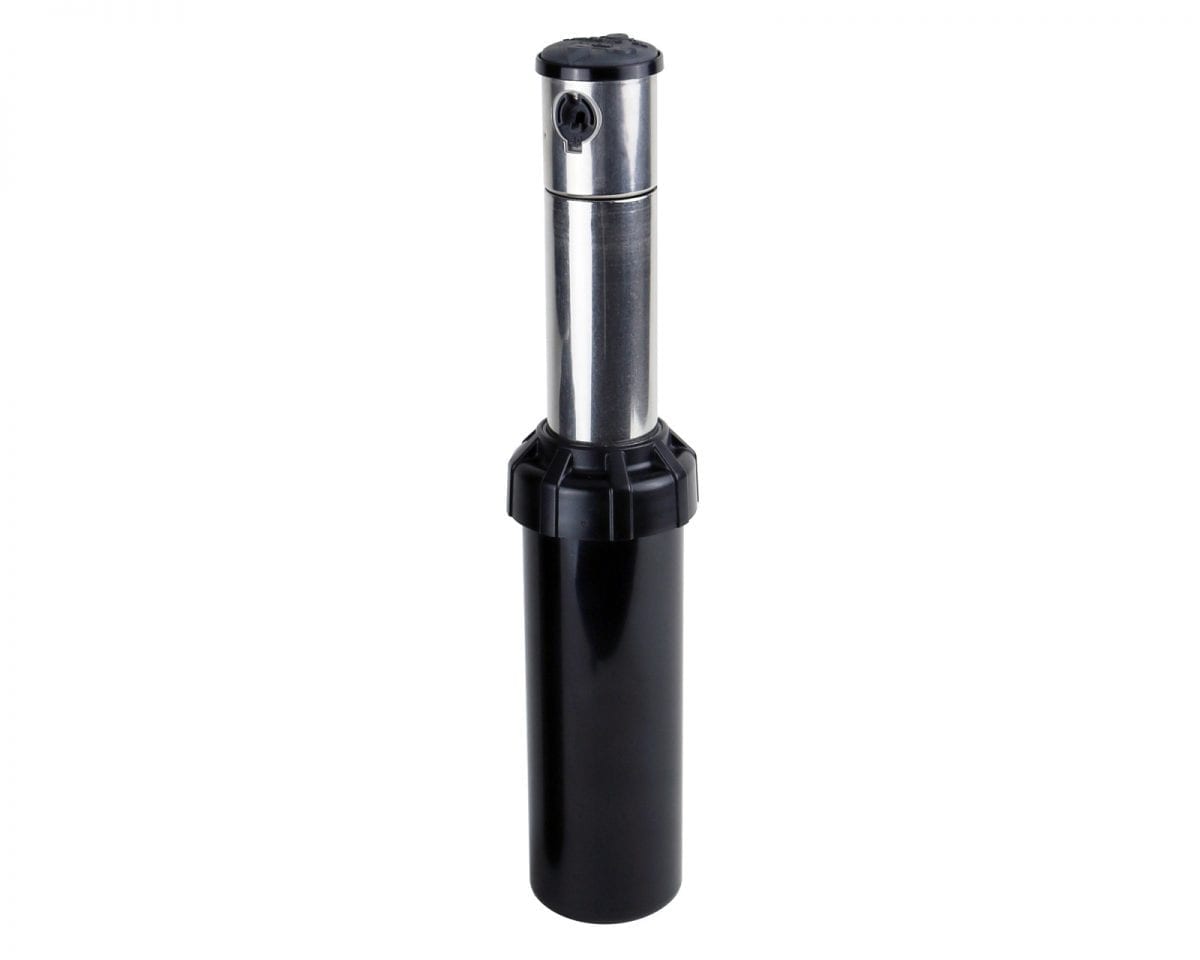

- Stainless steel riser
- Effluent
